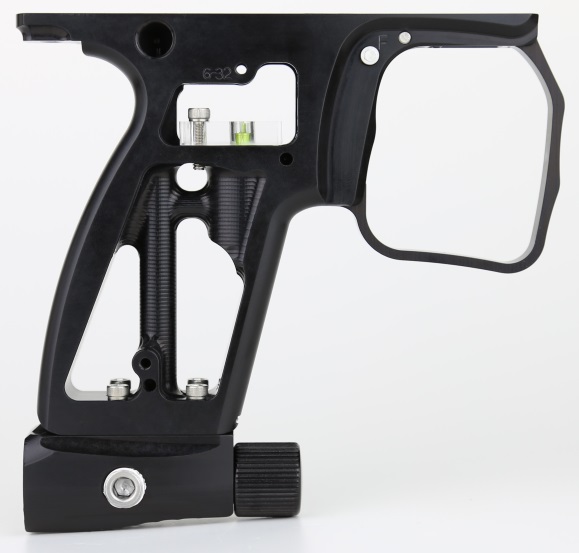

NMag Mech Grip Frame Item details: Nummech's N-Mag grip frames are built using a new approach to the typical Automag frame layout. This new design combines proven ergonomics of typical 72-degree Nummech grips with an integrated frame-routed air supply that removes most of the marker's external hoses. Only a short hose is required to plumb the valve's air input to the grip frame.

Internally, N-Mag frames utilize common mechanical Automag parts such as triggers, sears, and safety buttons. The N-Mag frame is compatible with mechanical Automag rail/valve combinations such as the Minimag, Tac-One, RT Pro, RT ULE bodies, and others. Two options for trigger guards are available, depending on the foregrip's distance from the guard.

A new purging ASA valve is required to operate the frame-routed air supply, which is included with the basic frame kit. The frame has an integrated T-rail bottomline and #10-32 bolt-on ASA screw holes which can be used with external hoses if you wish to use a different ASA housing.

N-Mag grip frames are internally milled for an optional pneumatic trigger valve kit which can be purchased at a later date. The basic frame upgrade kit includes plug hardware to seal the internal passages.

N-Mag grip frame N-Mag grip frame N-Mag grip frame N-Mag grip frame

    Features:
  • Drop-in upgrade that requires no permanent marker modifications
  • Re-use your existing trigger and grips
  • Grip frame palm hump
  • Compatible with standard ".45 style" grip panels and wraps
  • Two choices of trigger guards are available, depending on foregrip position
  • Integrated air port drilled vertically through the grip, leading to a 1/8"-NPT air line connection
  • New low-profile safety button (included)
  • Trigger pin with lock screw (included)
  • Integrated trigger pre-travel adjustment screw (included)
  • Partially-concealed frame screw heads
  • (Optional) compatible with T-slot or bolt-on #10-32 ASA mounting systems
  • (2020+) Gas-through tank shutoff ASA adapter with "Saddle" lever on/off
  • (2020+) Internally purging ASA
  • Machined from solid billet aluminum 7075-T651 and plated with type-2 anodizing.
  • Lifetime limited warranty included
    Included in the package:
  • N-Mag grip frame with one trigger guard
  • Safety button with spring-ball hardware
  • Internal blocker that can be removed if upgrading to pneumag trigger valve
  • (2020+) Saddle tank shutoff ASA
  • New mounting hardware and grip panel screws
  • Installation instructions
  • (Optional) Nummech machined air fittings set

N-Mag Double Mechanical Grip Frame -Typical color/finish options: BLACK GLOSS
-The item is in stock if you are able to add-to-cart below. If not then the item is backordered.
-Most aluminum products are available as either gloss or dust finish. "Gloss" components are smooth and somewhat reflective. "Dust" components have a matte or diffused finish which is non-reflective. "Polished" components have been buffed to a high sheen/luster (uncommon for our standard products due to the cost involved).
-Raw items are usually available for custom marker builds; contact us for information.

Status: Out of stock

Note: Delivery times are not guaranteed. Tracking is only available for shipments within the United States.

Instructions: N-Mag mechanical grip frames
Installation instructions
Replacement hardware: N-Mag mechanical grip frames
Item: Description: Price/each: Diagram:
N-Mag ASA screw Socket head cap screw; #6-32 thread, 1/2" length $0.75
N-Mag grip frame diagram
Internal air port set screw Set screw; #10-32 thread, 3/16" length, alloy steel $0.75
Trigger guard screw Socket head cap screw; #6-32 thread, 1/4" length $0.99
Front frame screw (long) for ULE body Button head cap screw; #10-32 thread, 3/4" length $0.99
Front frame screw (short) for X-Mag/unibody Button head cap screw; #10-32 thread, 7/16" length $0.99
Regulator blocker o-ring O-ring; size 13/70 $0.30
Regulator blocker plate $1.50
Regulator blocker plate screw Socket head cap screw; #6-32 thread, 1/2" length $0.75
Trigger pin Dowel pin; 1/8" diameter, 1/2" length $0.99
Trigger pre-travel set screw Set screw; #6-32 thread, 5/16" length $0.99
Safety button $2.50
Safety spring $1.25
Safety spring bearing ball Bearing ball; 3/32" diameter $0.50
Safety spring set screw Set screw; #6-32 thread, 1/8" length $0.99
Replacement hardware: N-Mag "knob" ASA
Item: Description: Price/each: Diagram:
ASA seal o-ring O-ring; size 8/70 $0.30
N-Mag knob ASA diagram
ASA knob o-ring O-ring; size 8/90 $0.30
1/8-NPT port plug Set screw plug; 1/8"-27 NPT thread $0.99
Description of production changes: N-Mag mechanical grip frames (all versions)
Batch 1: Identified by no engraving for date (as found on newer versions). This first batch includes only double trigger frames.
Batch 2: Identified by engraved text "2018" under the grips. This batch includes both single-trigger and double-trigger frames. The main change relates to internal milling within the palm area, which was adjusted to shrink gaps with some grip panels and wraps.
Batch 3: Identified by engraved text "April 2020" under the grips. These frames have milling on the top to ensure compatiblity with sears that hang below the rail's bottom surface. The trigger slot has been widened by a hair to accommodate triggers that may be slightly thicker than others. The ASA was updated with a smaller pin-valve purge system which is more reliable than the previous style.
