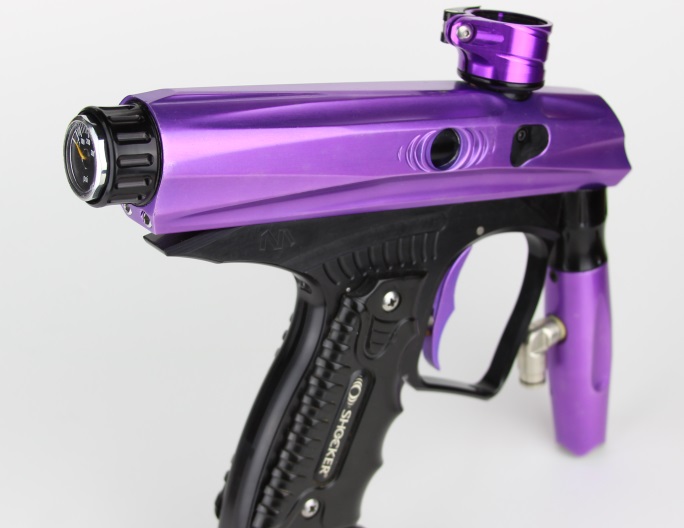

Airsmith style Shocker LP bolt guide Item details: Nummech has developed a set of customized Shocker bolt guides, each featuring a different back cap. This "Airsmith" style bolt guide features a 1/8"-NPT threaded air connection for an optional operating pressure gauge. The bolt guide uses a traditional tool-free knob to allow for easy maintenance.
Each of Nummech's Shocker bolt guides use an identical low-pressure guide shaft, which boosts the marker's firing air volume by approximately 25%. The low pressure air boost makes this bolt guide ideal for Shockers that are unable to utilize a low pressure fire chamber due to body milling.
- Features:
- Compatible with any Shocker SFT or NXT bolt system.
- Hollow shaft allows increased air volume (~25% increase compared to HE fire chamber).
- Multiple styles available, using a single standardized low pressure shaft.
- Soft silicon rubber bolt guide bumper (included).
- Optional "hard" nylon bolt guide bumper (included).
- Optional anti-rollback "ARB" screw (included). Note that the ARB can only be used with an open-face bolt.
- Airsmith style bolt guide: Tool-free knob for easy removal.
- Airsmith style bolt guide: 1/8"-NPT gauge port. Gauge is available at extra cost.
- Machined from solid billet aluminum 6061-T6 and plated with type-2 anodizing.
- Lifetime limited warranty included.
- Included in the package:
- Bolt guide with all o-rings and bumper installed
- Optional anti-rollback screw and hard bumper
- Airsmith style bolt guide: ships with 1/8-NPT plug installed
- Airsmith style bolt guide: plastic disposable gauge installation tool
- Installation instructions
Airsmith style Shocker LP bolt guide
-Typical color/finish options: BLACK GLOSS, BLACK DUST
-Choose with or without a minigauge.
-The item is in stock if you are able to add-to-cart below. If not then the item is backordered.
-Most aluminum products are available as either gloss or dust finish. "Gloss" components are smooth and somewhat reflective. "Dust" components have a matte or diffused finish which is non-reflective. "Polished" components have been buffed to a high sheen/luster (uncommon for our standard products due to the cost involved).
-Raw items are usually available for custom marker builds; contact us for information.
Status: Out of stock
Note: Delivery times are not guaranteed. Tracking is only available for shipments within the United States.
Related links:
| Instructions: Shocker LP bolt guide (all versions)
Installation instructions |
||||
| Replacement hardware: Shocker LP bolt guide (all versions) | ||||
| Item: | Description: | Price/each: | Diagram: | |
| Bolt guide endcap o-ring | O-ring; size 22/70 | $0.30 |
|
|
| Bolt guide shaft o-ring | O-ring; size 12/70 | $0.30 | ||
| Bolt guide internal seal o-ring | O-ring; size 1.5mm x 7mm ID | $0.40 | ||
| Bolt guide bumper (soft) | Silicon rubber bumper disk | $1.99 | ||
| Bolt guide bumper (hard) | Nylon plastic bumper disk | $1.99 | ||
| ARB screw | Set screw; #10-32 thread, 3/4" length | $0.99 | ||
| 1/8" NPT threaded plug | Set screw; 1/8" NPT thread | $0.99 | ||
| 300-psi minigauge | $14.99 | |||
| Disposable minigauge install tool | $1.99 | |||
